Measurements:
| PTFE MEMBRANE: | 100% (CAS No. 9002–84–0) |
|---|---|
| THICKNESS: | 0.75 (mm ±0.1mm) |
| UL RATING: | 5VA, V–0, f1 (UL 94, UL746C) |
| TYPICAL REFLECTIVITY (250–400nm): | 96% |
| TYPICAL REFLECTIVITY (400–800nm): | 94% |

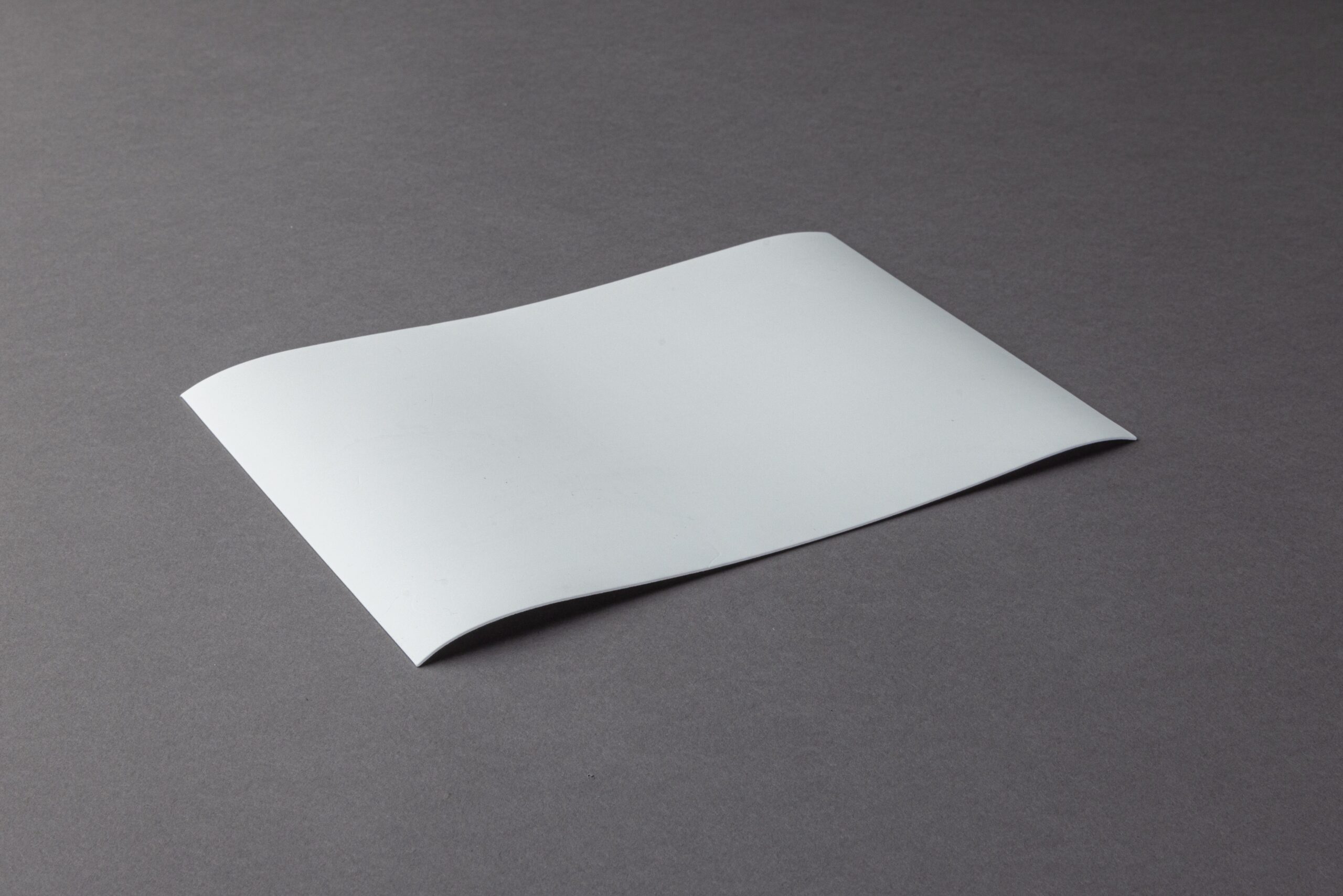

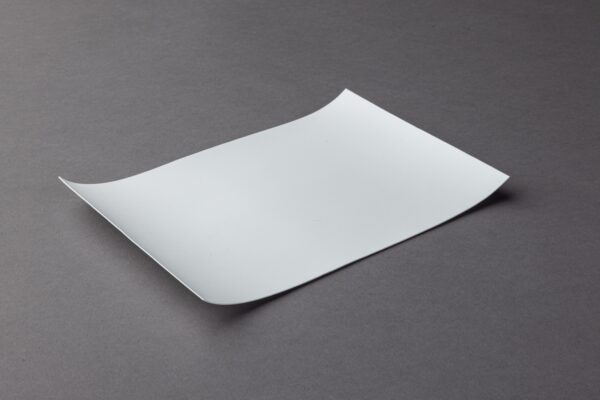

PMR10 – POREX Virtek® PTFE UV Reflective Durable Media for UV Disinfection applications
$0.00
Can be supplied in format of:
– Master rolls (340 ±5mm width) on 75mm (3”) plastic core
– Adhesive Backed
– Die cut shapes
– Assembly suggestions:
– Pressure Sensitive Adhesive
– Snap rings
– Rivets
– Clamping
– Raw Material Compliant with:
– PFOA Free, Compliant with (EC) No 1907/2006 REACH and
Persistent Organic Pollutants (POP) EU 2019/1021
– Compliant with RoHS, WEEE
– Operating temperature range: -40 to 260ºC
Other
Naturally hydrophobic
Not recommended for UV below 210nm
