Measurements:
| PTFE MEMBRANE: | 100% (CAS No. 9002–84–0) |
|---|---|
| PORE SIZE (mean capillary flow): | 3 Microns (nominal) |
| AIR FLOW: | Min 16, Typical 40 (l/hr/cm² Δp 70mbar) |
| WATER ENTRY PRESSURE (WEP): | Min 80, Typical 200 (mbar) |
| THICKNESS: | 2.0 (mm ±0.25mm) |

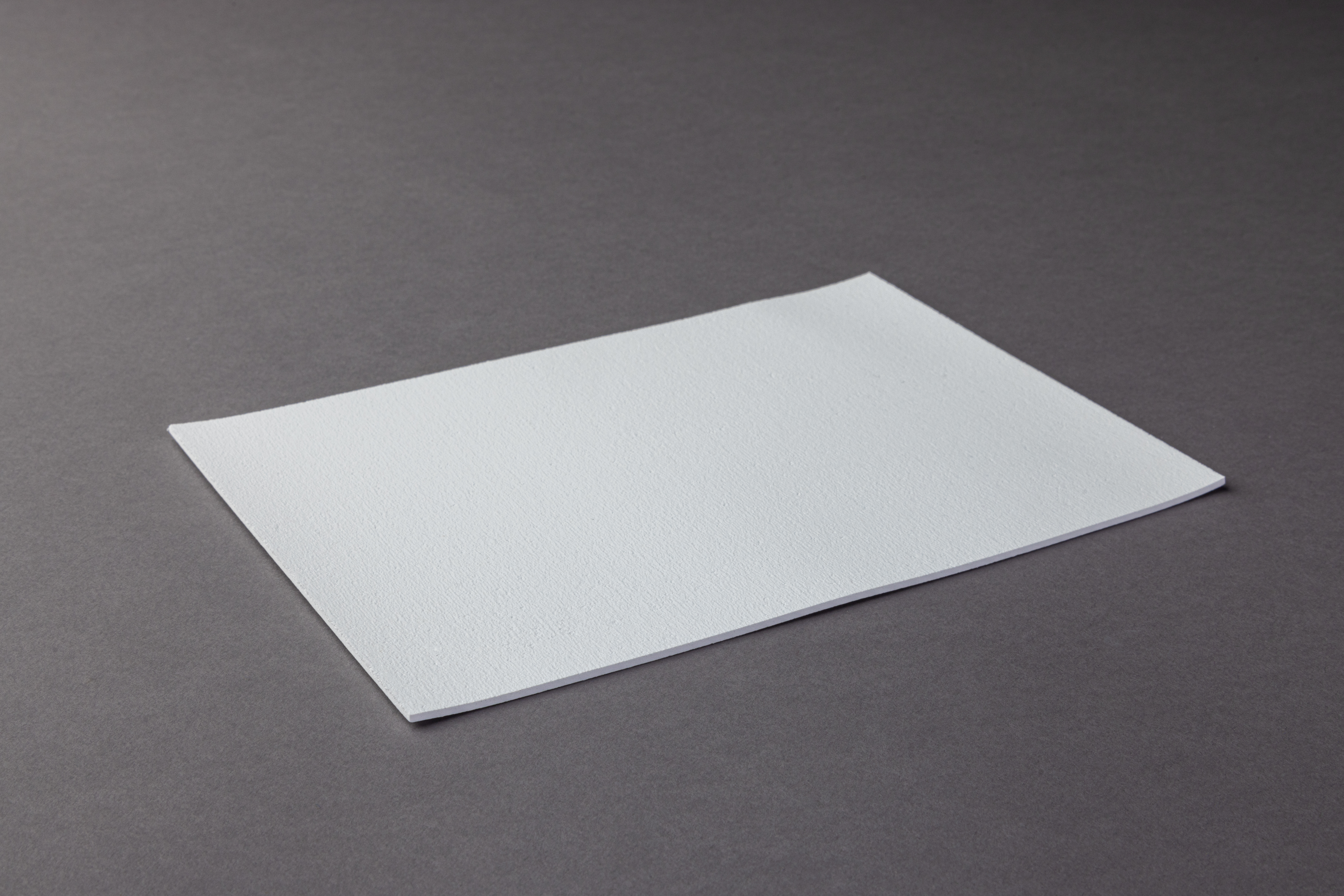

BM50 – POREX Virtek® PTFE Hydrophobic Medical Venting Porous Membrane Sheets
$0.00
Medical Venting Porous Membrane Sheets used to protect, seal, vent, debubble or pressure equalize.
• Can be supplied in format of:
– Master rolls (330 ±5mm width) on 75mm (3”) plastic core
– Die cut shapes
• Assembly suggestions:
– Over-moulding
– Pressure Sensitive Adhesive
– Compression seal
– Push Fit
• Sterilisation method:
– Steam/Autoclave (repeated use)
– EtO
• PTFE Raw material is compliant with:
– FDA 21CFR 177.1550
– USP 28, NF 23, 2005, for USP Class VI Plastics at 70°C
– PFOA Free, Compliant with (EC) No 1907/2006 REACH and Persistent Organic Pollutants (POP) EU 2019/1021
– Operating temperature range: -40 to 260ºC
Other:
– Naturally hydrophobic
