Automotive – Lighting & Electronic venting
Lighting Vents
Enhanced Safety with Porex Virtek® PTFE Automotive Headlight Vents
Equalize Pressure While Minimizing Humidity Flow Using Porex Lighting Vents
From getting people to work to transporting goods, automobiles play a vital role in our daily lives and the global economy. Whether you’re driving in the early morning or late at night, having reliable and effective automotive lighting is essential for the safety of your vehicle’s occupants and other road users.
Porex understands the critical importance of automotive lighting and offers innovative solutions for lighting vents. Our specialized venting materials are designed to protect automotive lighting systems from moisture, dust, and other environmental contaminants that can compromise their performance. By integrating Porex’s high-quality venting solutions, automotive manufacturers can ensure that their lighting systems remain clear, functional, and reliable, even in demanding conditions.
Porex Virtek – Automotive / oleophobic product range (hydrophobic & oleophobic)
| Item Number | IP Rating † | WEP* mbar (Typical) |
Typical Airflow l/hr/cm² @70mbar |
Filtration Efficiency** >99.99% |
Thickness mm |
Max Operating Temp °C |
Salt Fog$ |
|---|---|---|---|---|---|---|---|
| PMA10‡ | 64,67 | 370 | 75 | 0.4 µ | 0.18 | 260 | No pen. |
| PMA15‡ | 65,67,68 | 520 | 25 | 0.1 µ | 0.25 | 260 | No pen. |
| PMA20‡ | 65,66,67,68 | 1050 | 7 | 0.1 µ | 0.19 | 260 | No pen. |
Porex Virtek – General Puropse Venting product range (hydrophobic)
| PMV10 | 64,67 | 270 | 107 | 0.5µ | 0.13 | 260 | No Pen. |
| PMV10L*** | 64,67 | 270 | 85 | 0.5µ | 0.3 | 100 | No Pen. |
| PMV15 | 64,67 | 370 | 75 | 0.4µ | 0.18 | 260 | No Pen. |
| PMV15T‡ | 64,67 | 370 | 75 | 0.4µ | 0.18 | 260 | No Pen. |
| PMV20 | 64,65,68 | 520 | 25 | 0.1µ | 0.25 | 260 | No Pen. |
| PMV25 | 65,67,68 | 765 | 17 | 0.2µ | 0.1 | No Pen. | |
| PMV27 | 65,66,67,68 | 1050 | 7 | 0.1µ | 0.19 | 260 | No Pen. |
*WEP = Water Entry Pressure
** According to IEST RP-CC007.2 2009
$ASTM B117-11 test method
***Laminated polyolefin mesh backing
‡ Oleophobic, AATCC TM 118 – Grade 8
Moisture Vapor Transmission Rate approx. 900g/m2/day. ASTM E96-16 water escaped from sealed cup @ 23±2°C, 50±10%rH chamber.
Properties are typical and not meant for specifications. Selected options and adhesives may affect properties
RoHS, WEEE, REACH Compliant (PFOA Free)
PRODUCT OFFERING BY MATERIAL SERIES – POREX Virtek® ADHESIVE DISCS
Dimenions (OD x ID in mm)
| Material Series | 5 x 2 mm* | 7 x 3 mm | 10 x 6 mm | 12.7 x 7.1 mm | 20 x 13 mm |
|---|---|---|---|---|---|
| PMV10 | PMV10M | PMV10N | PMV10P | PMV10W | PMV10C |
| PMV10L | PMV10LM | PMV10LN | PMV10LP | PMV10LW | PMV10LC |
| PMV15 | PMV15M | PMV15N | PMV15P | PMV15W | PMV15C |
| PMV20 | PMV20M | PMV20N | PMV20P | PMV20W | PMV20C |
| PMV27 | PMV27M | PMV27N | PMV27P | PMV27W | PMV27C |
| PMA10 | PMA10W# |
Special order items highlighted for higher MOQ. All others are stocked items
3M 93020LE adhesive standard (120 °C continuous use temperature
# Oleophobic treated and high temperature adhesive (good to 150 °C)
M, N, P, W & C are size codes as listed in column heading.
Many other standard and custom sizes available. Contact Porex for more information

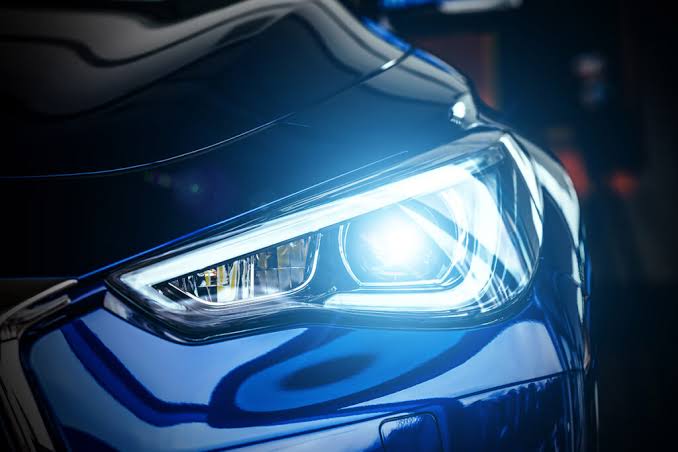

Automotive Lights
Without the fragility and variability common in non-sintered materials, POREX Virtek® PTFE, which is specifically designed for exterior automotive lights, uses unique sintered material that outperforms competitive expanded materials. With its robust porous structure, our vents equalize pressure while minimizing humidity flow into the enclosure, protecting enclosure seals from premature failure.
